Description

SPECIFICATIONS

AC Current: /

AC Voltage: 4V-600V

Battery Included: Yes

Brand Name: ANENG

Certification: None

DC Current: /

DC Voltage: 4V-600V

DIY Supplies: Electrical

Dimensions: /

Display Type: Digital Display

Hign-concerned Chemical: None

Is Smart Device: No

Measuring Capacitance Range: /

Measuring Inductance Range: /

Measuring Resistance Range: /

Operating Mode: Manual range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

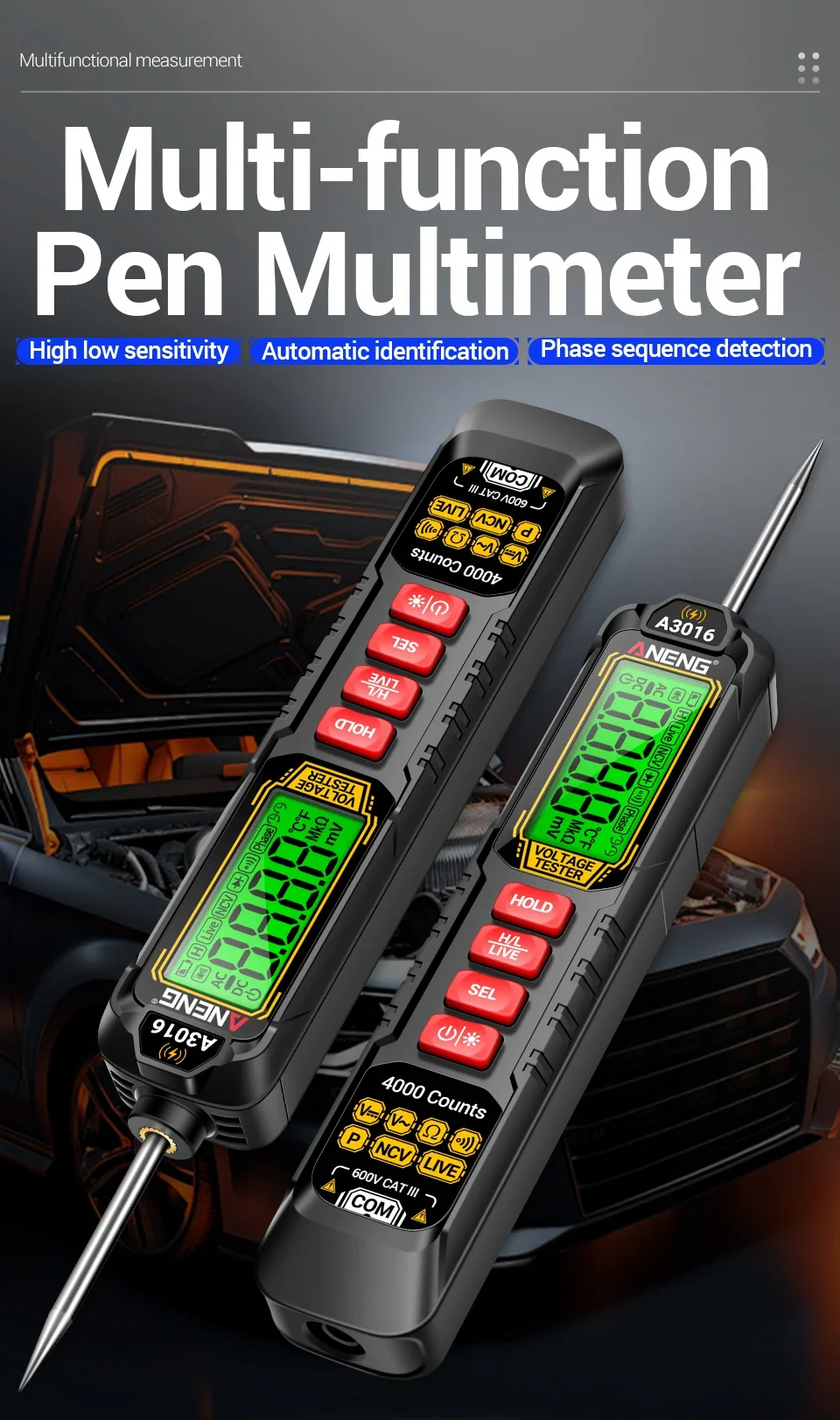

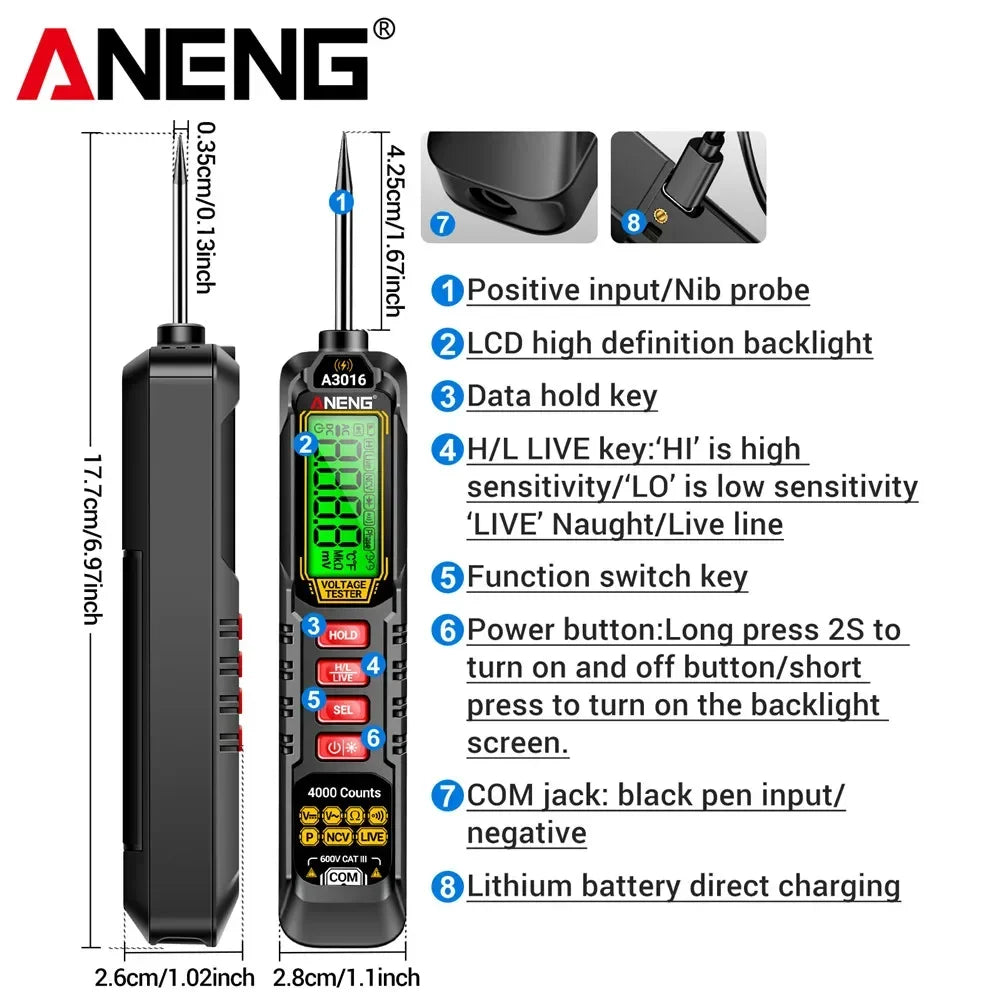

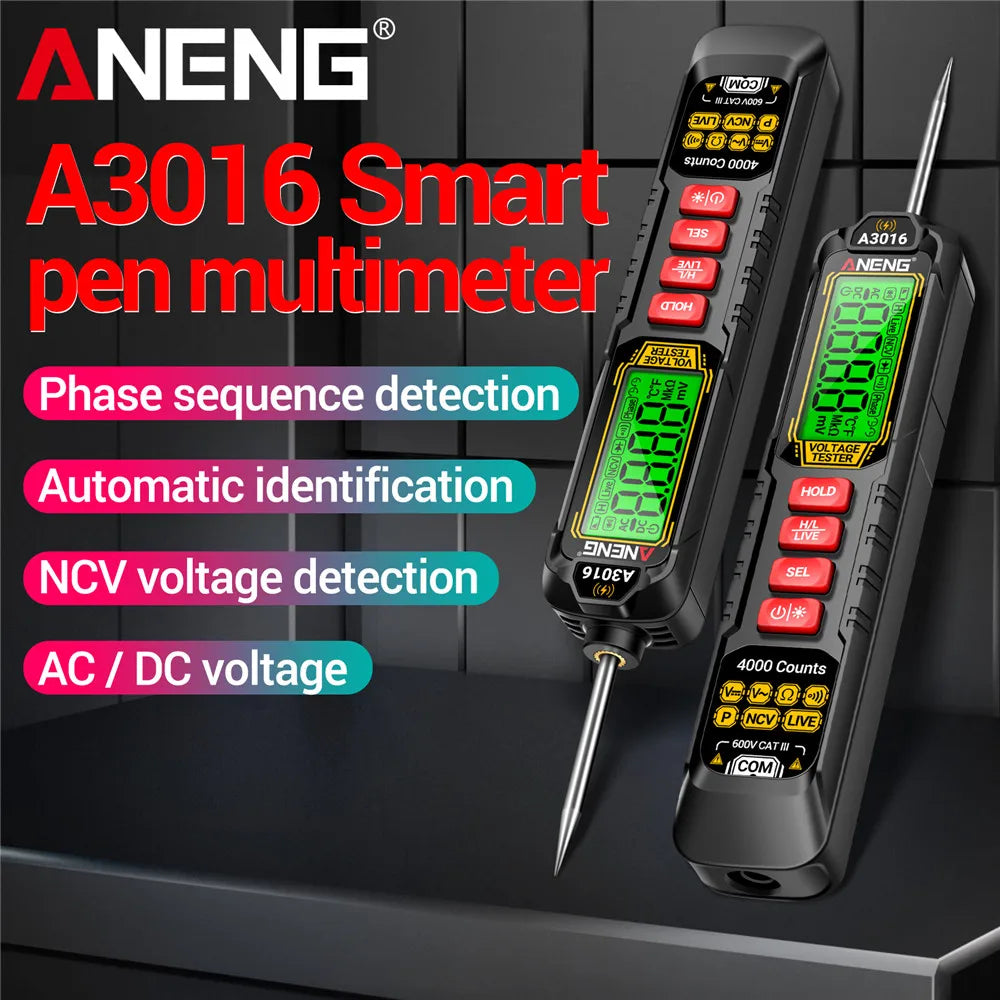

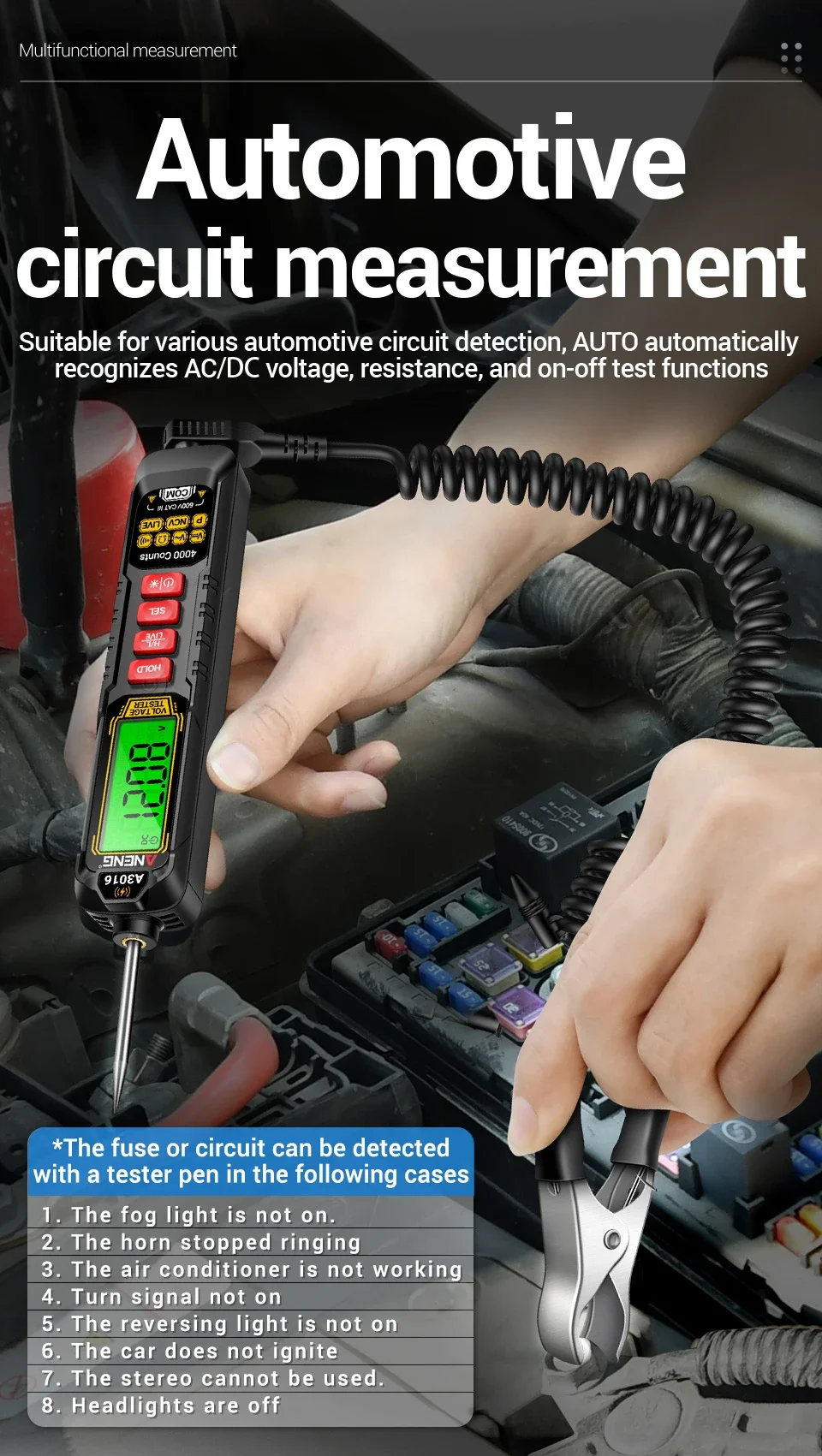

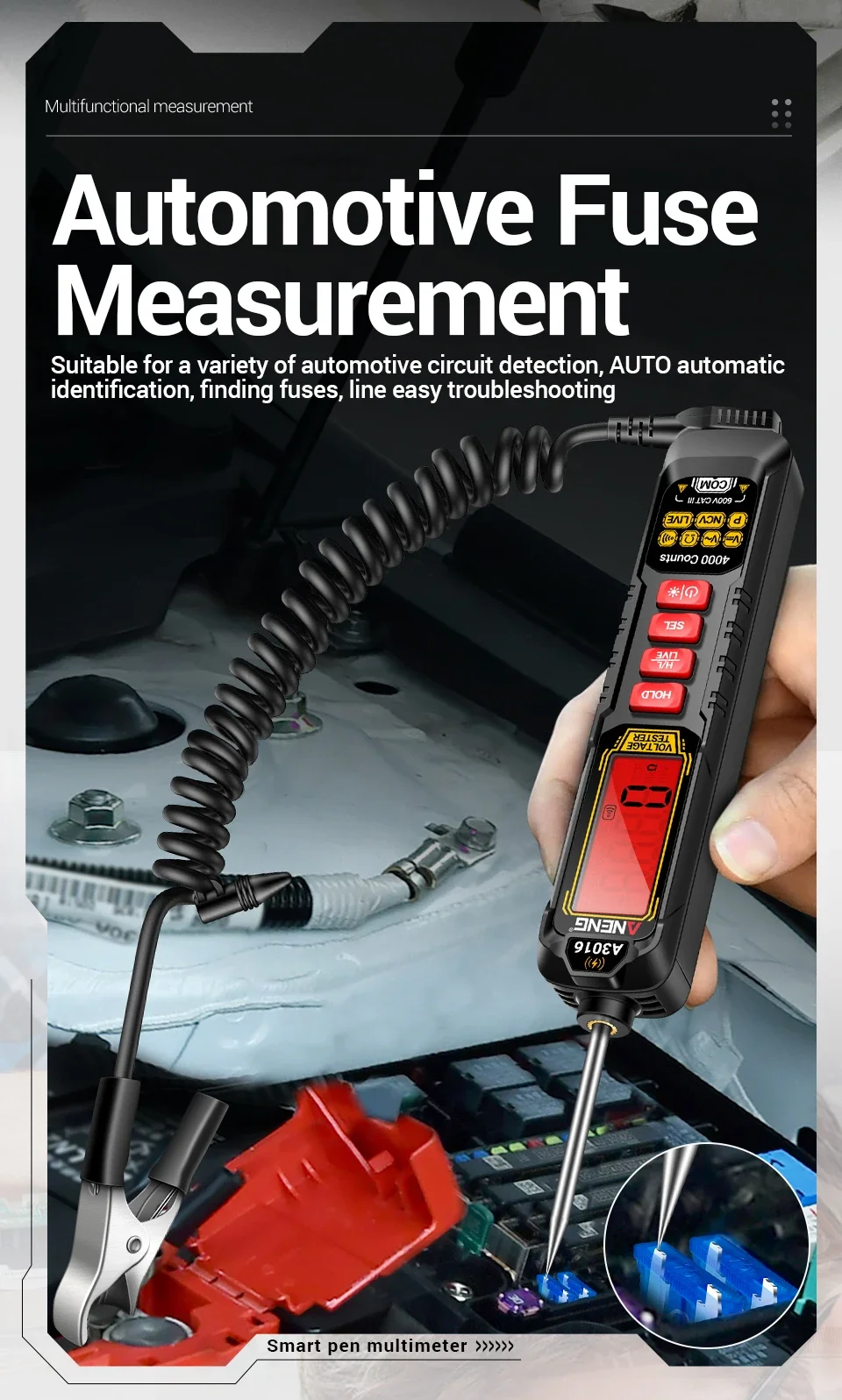

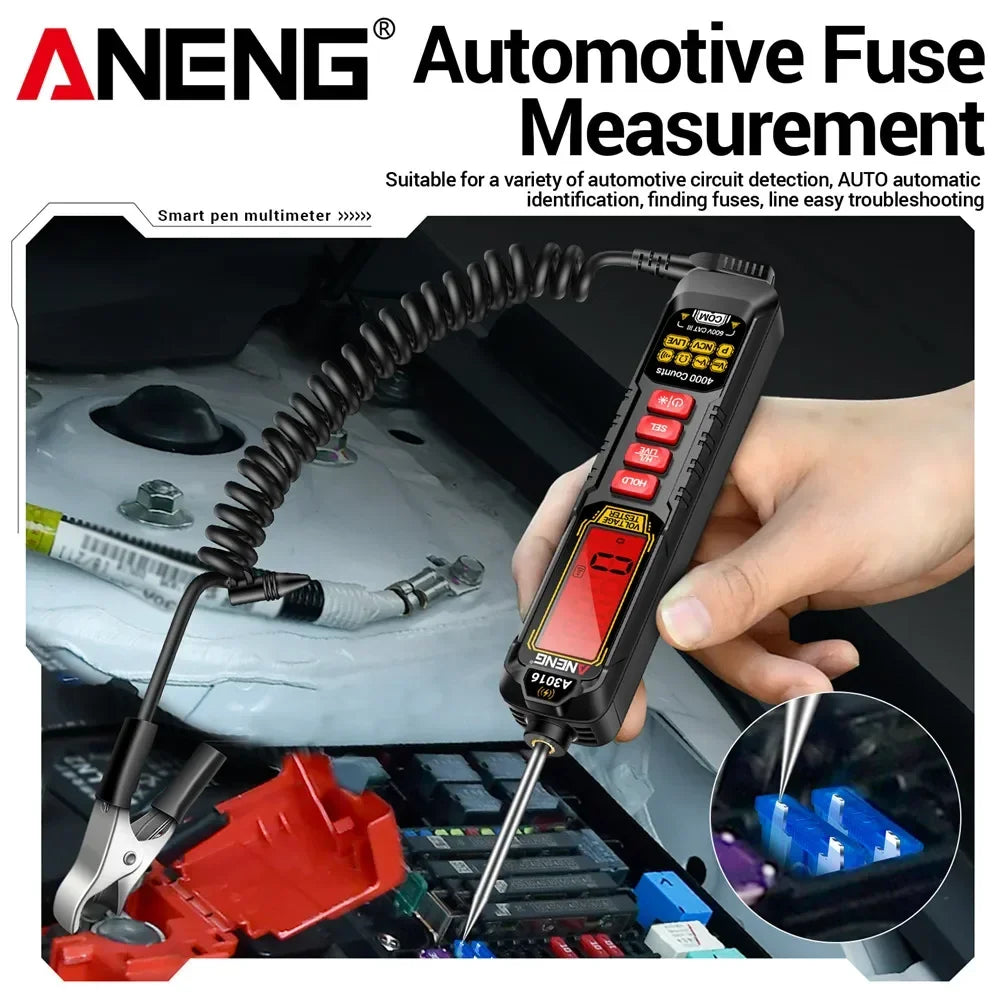

ANENG A3016 Digital pen multimeter Automotive professional AC/DC ammeter voltmeter NCV voltage induction diagnostic probe detector testing Tools

Features:

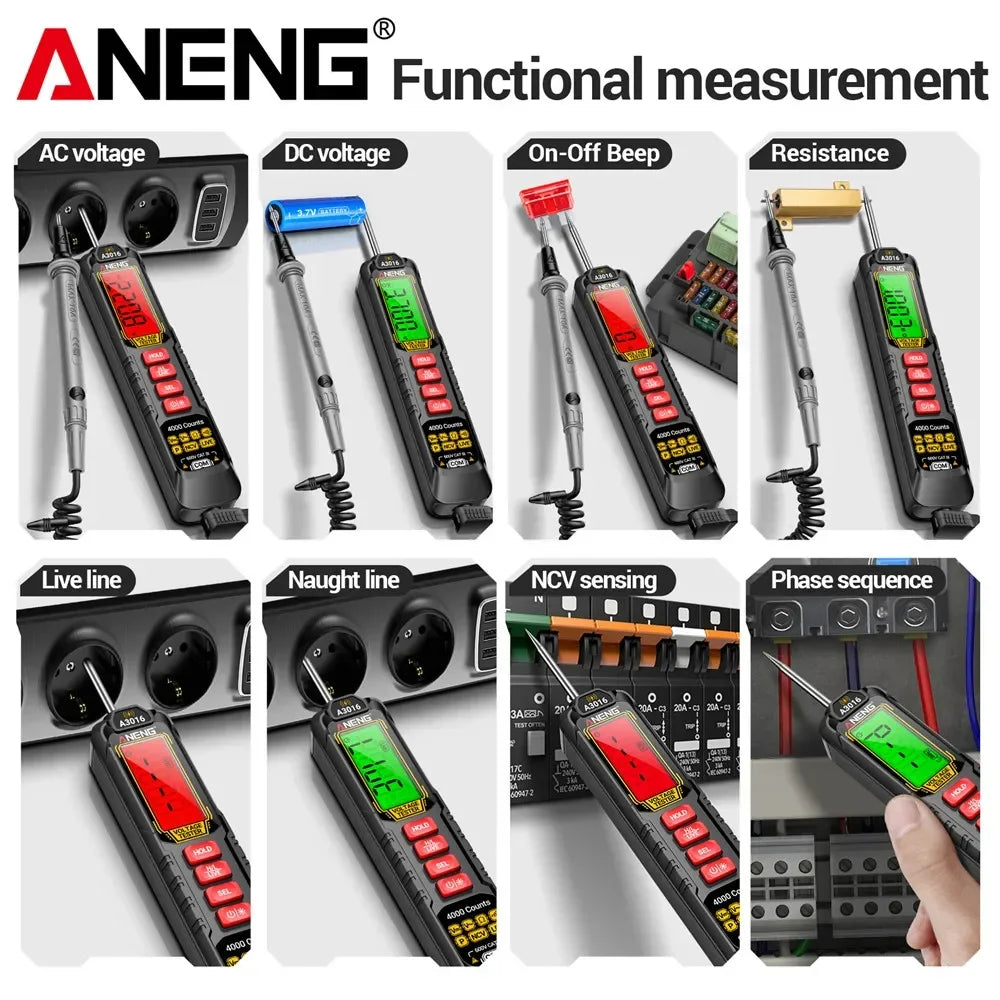

  1.  Multi functional real-time detection: AC/DC voltage detection, switch testing, resistance testing, on-off measurement, phase sequence measurement, data storage.

2.  Compact body, easy to carry.

3. Metal probe, durable and wear-resistant, long service life: high-quality probes are durable and resistant to oxidation.

4. Voltage: Can detect DC/AC voltage

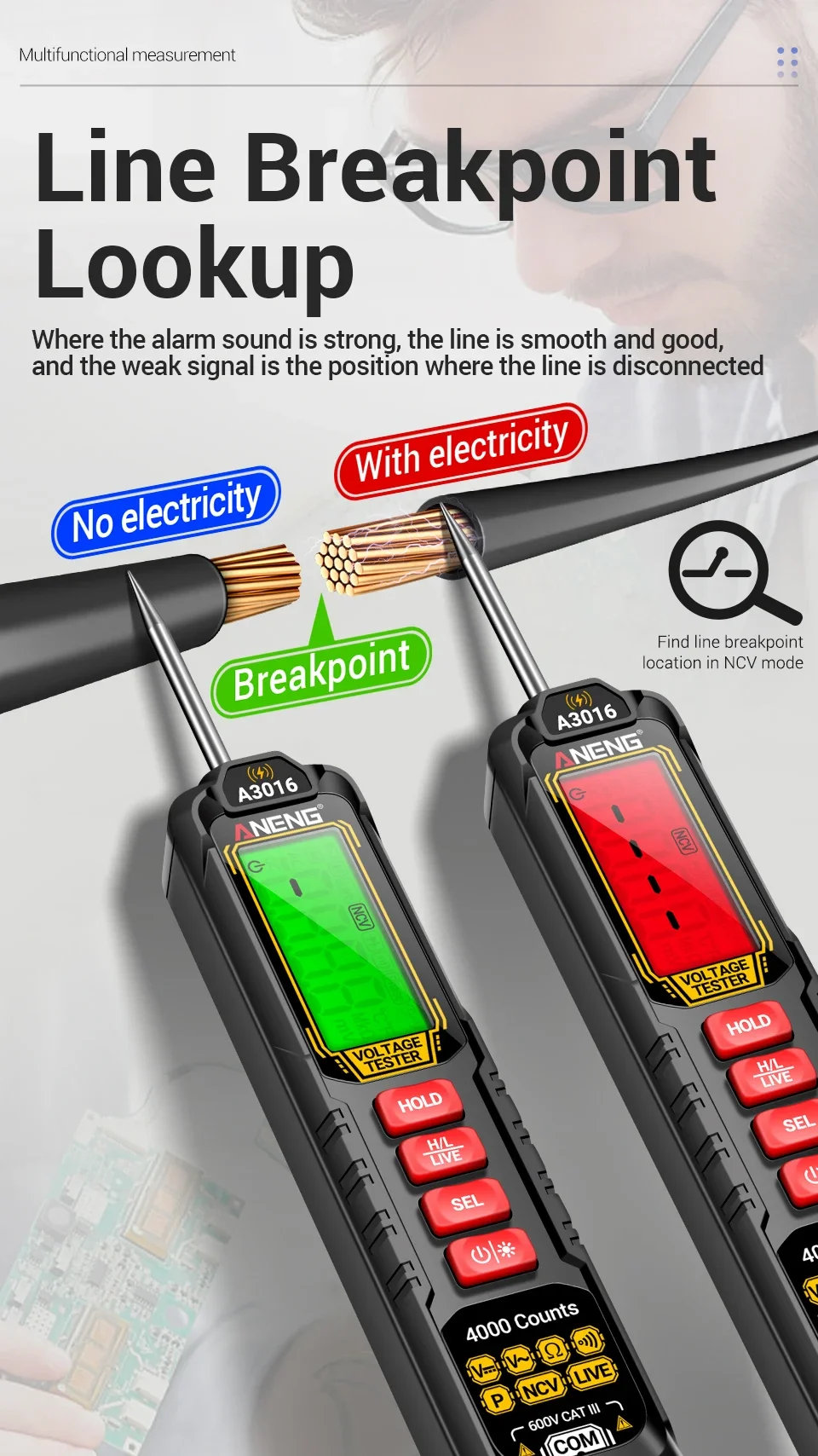

5.Switch test, find breakpoint: If the wire resistance is below 50 Ω, the buzzer will prompt. The backlight lights up red when conducting.

6.High definition LCD backlit screen: High definition LCD display screen suitable for measurement in various environments

7.LED lighting function: providing illumination in dark environments

8. Automatic shutdown: If there is no operation after a few minutes, the pen will automatically shut down.

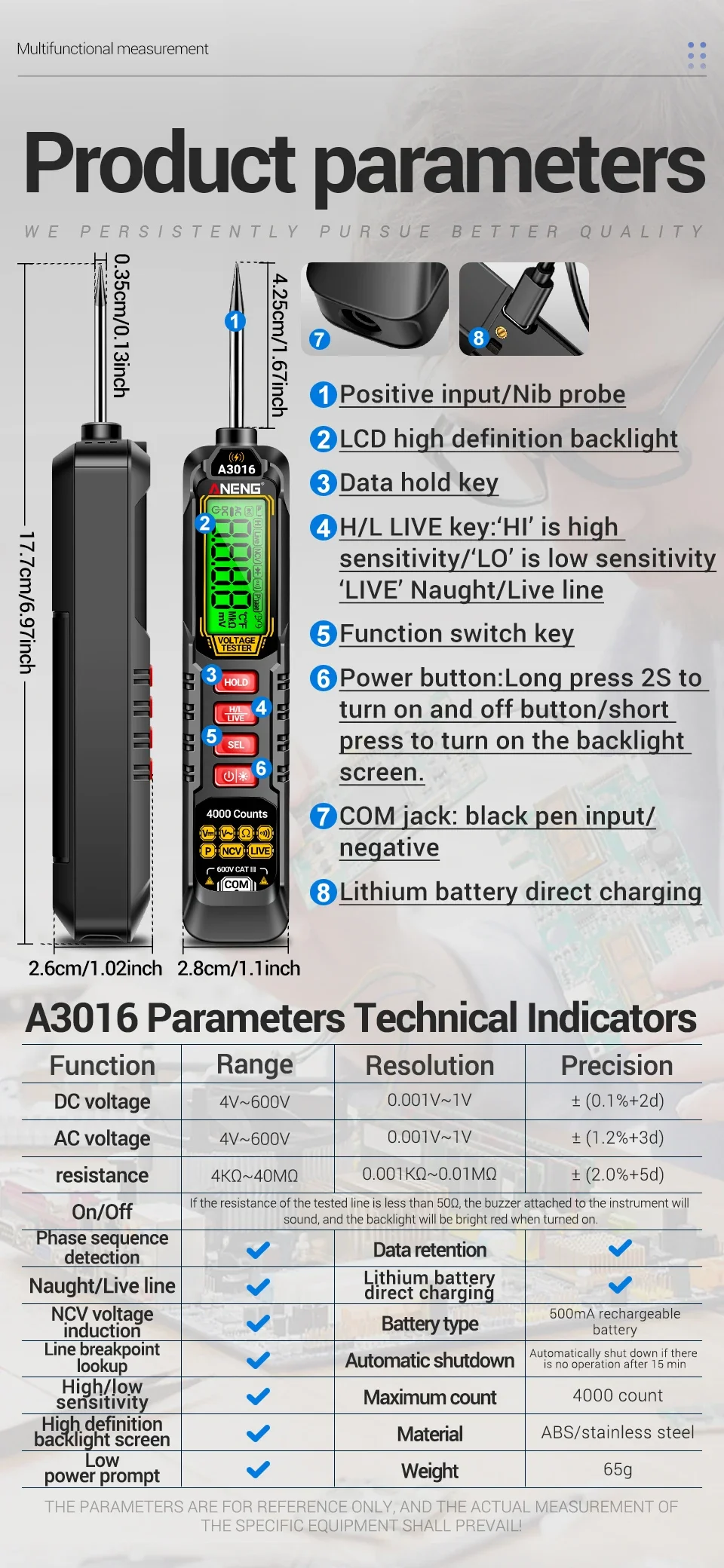

Parameters Technical Indicators:

Function	Range	Resolution	Precision
DC voltage	4V~600V	0.001V~1V	±(0.1%+2d)
AC voltage	4V~600V	0.001V~1V	±(1.2%+3d)
Resistance	4KΩ~40MΩ	0.001KΩ~0.01MΩ	士(2.0%+5d)
On/0ff	lf the resistance of the tested line is less than 500, the buzzer attached to the instrument willsound, and the backlight will be bright red when turned on.

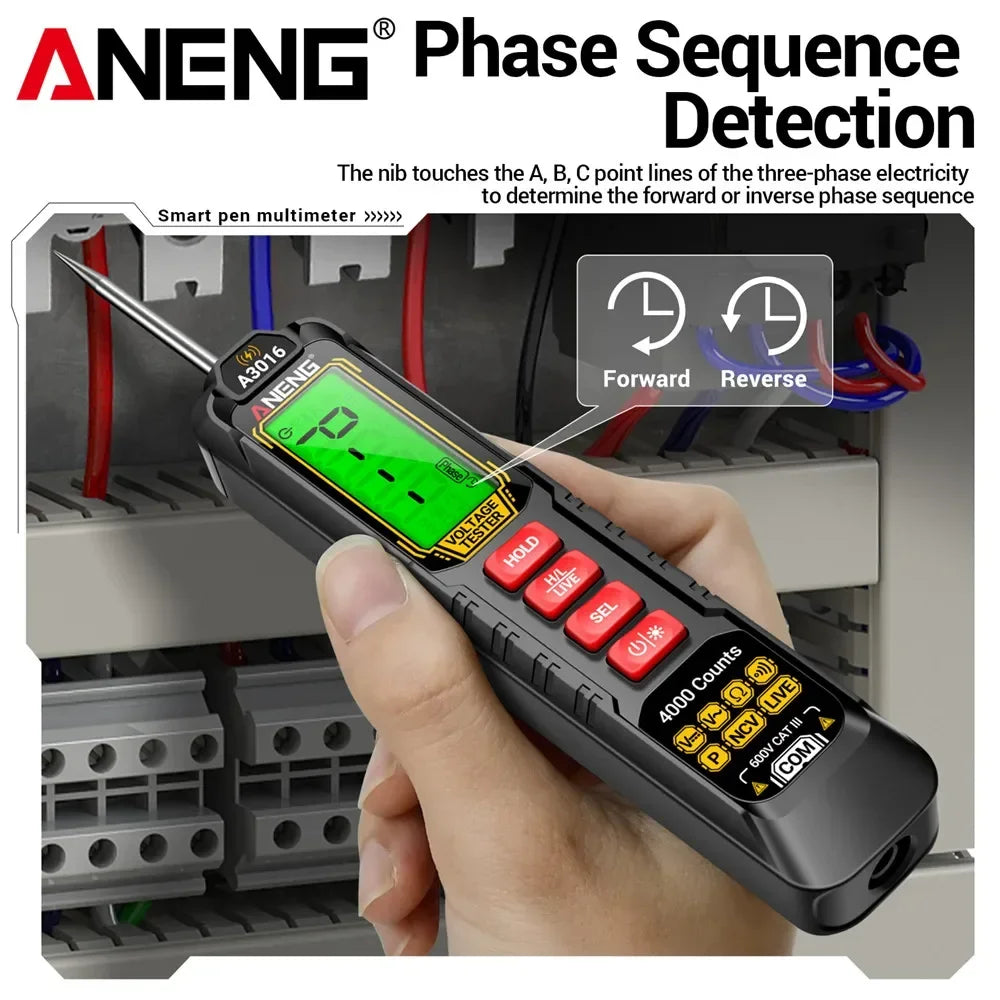

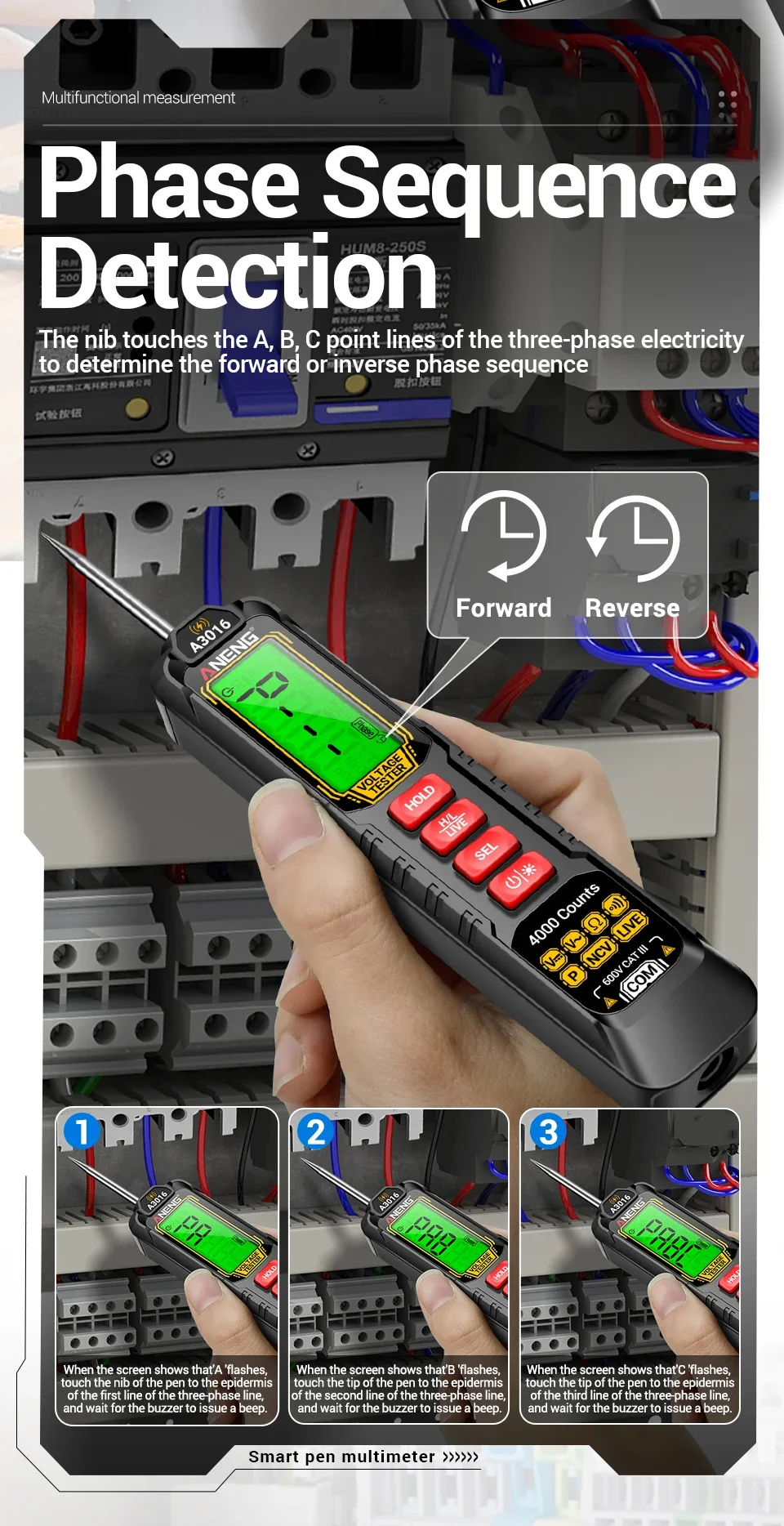

Phase sequencedetection	√	Data retention	√

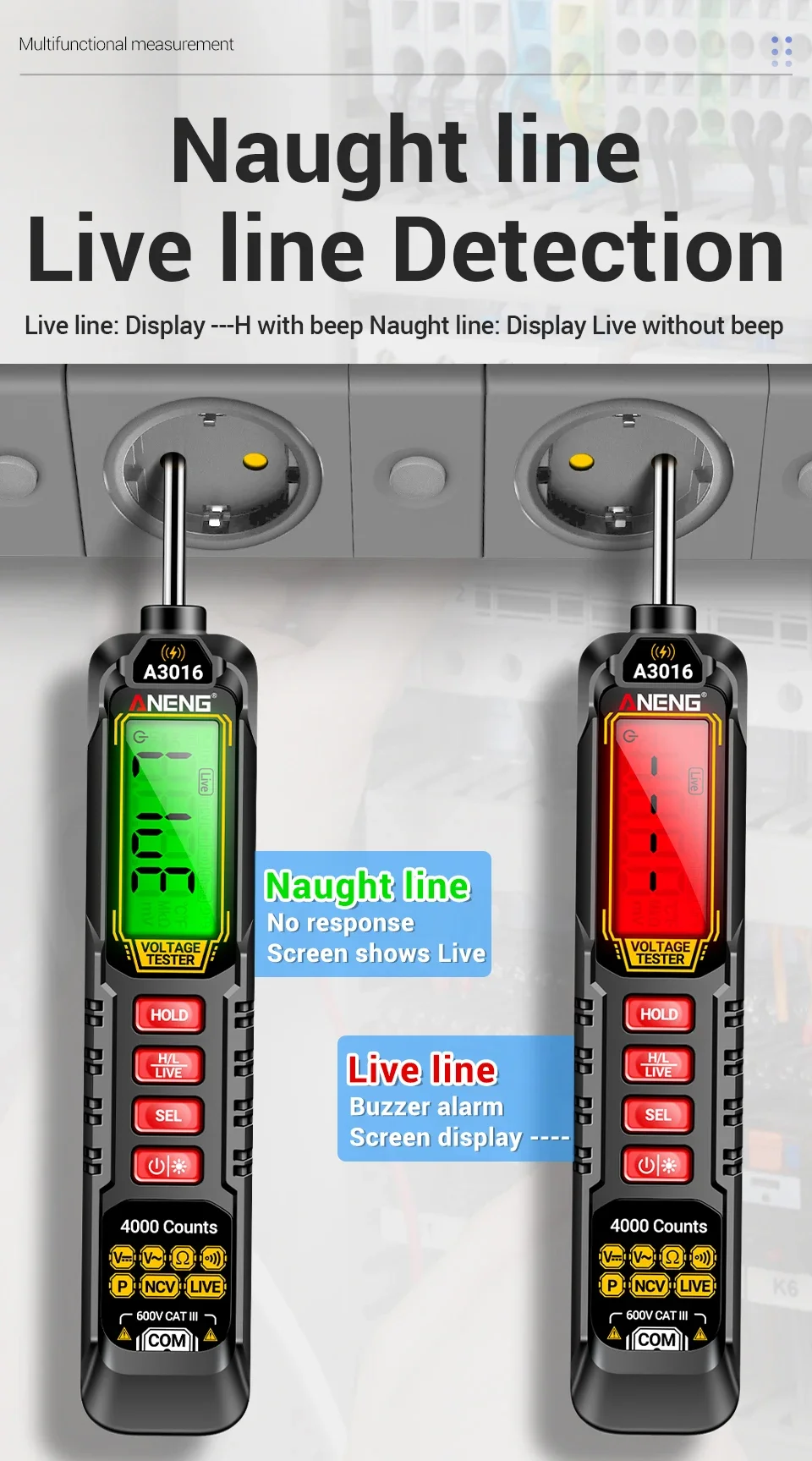

Naught/Live line	√	Lithium batterydirect charging	√

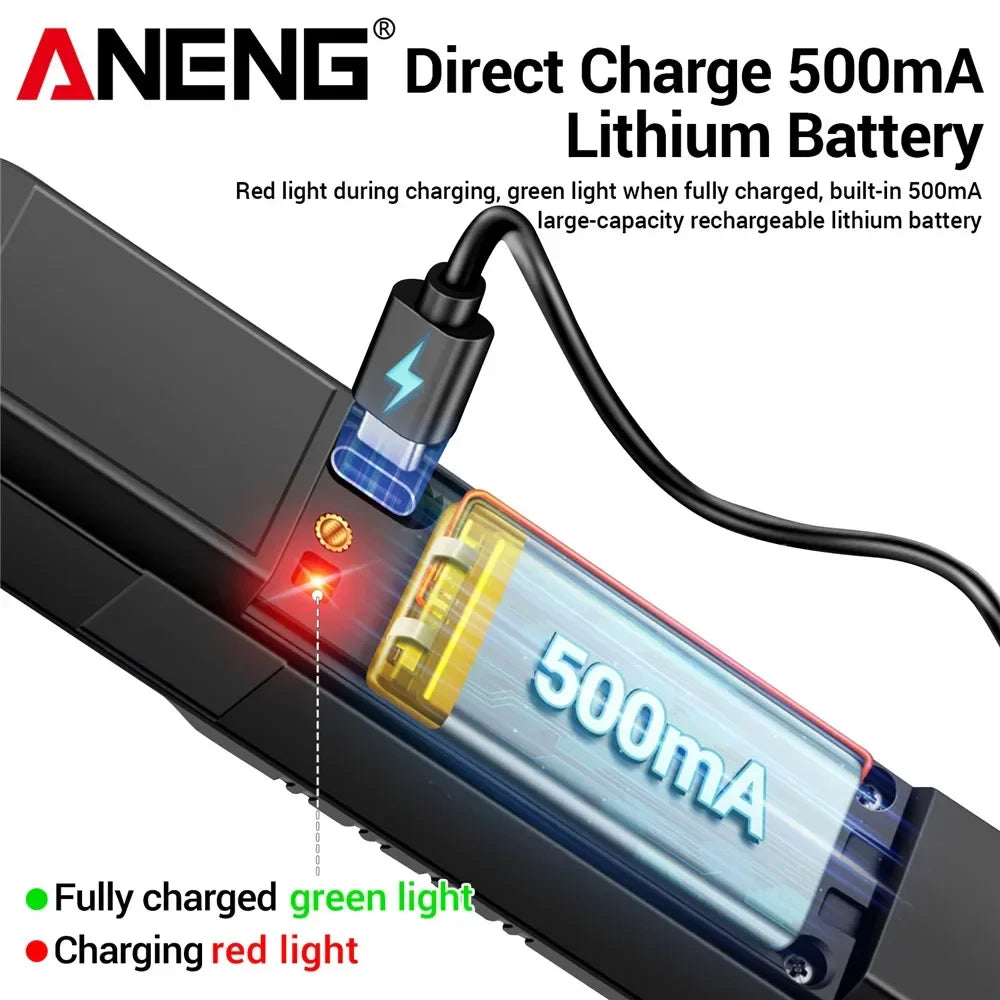

NCV voltage induction	√	Battery type	500mA rechargeable battery
Line breakpoin lookup	√	Automatic shutdown	Automatically shut down if thereis no operation after 15 min

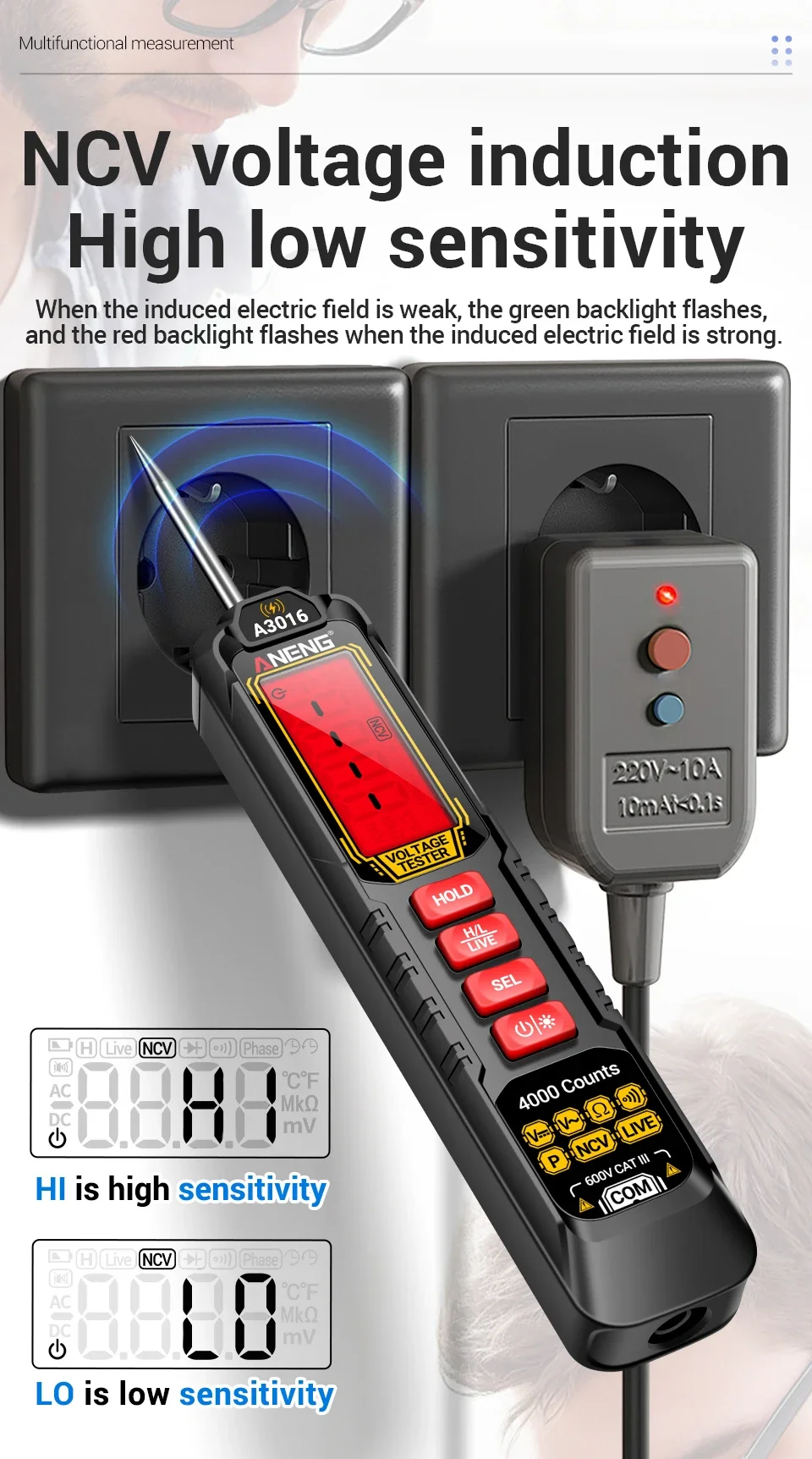

High/low sensitivity	√	Maximum count	4000 count
High. definition backlight screen	√	Material	ABS/stainless steel
Low power prompt	√

THE PARAMETERS ARE FOR REFERENCE ONLY, AND THE ACTUAL MEASUREMENT OFTHE SPECIFIC EQUIPMENT SHALL PREVAIL!

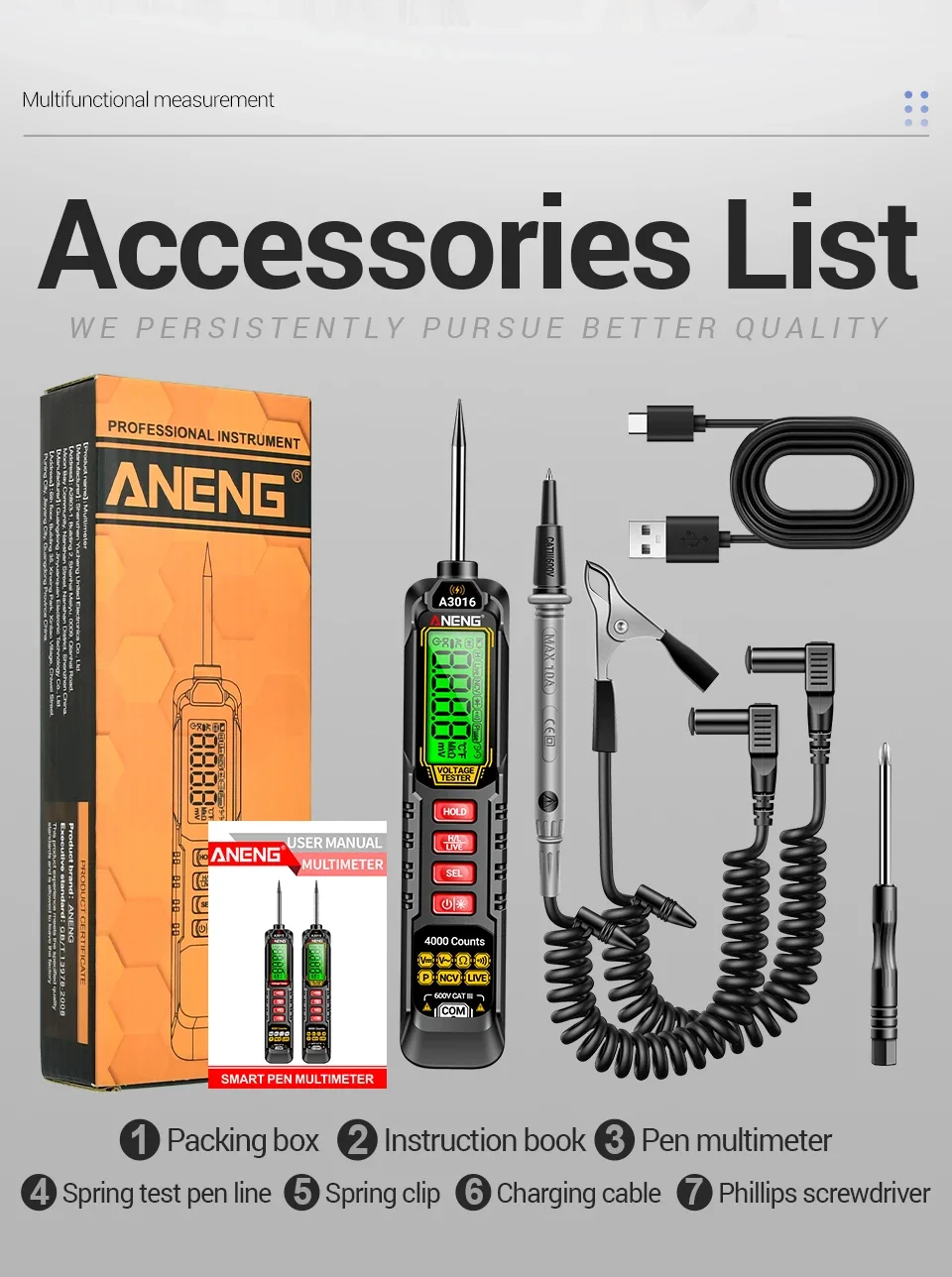

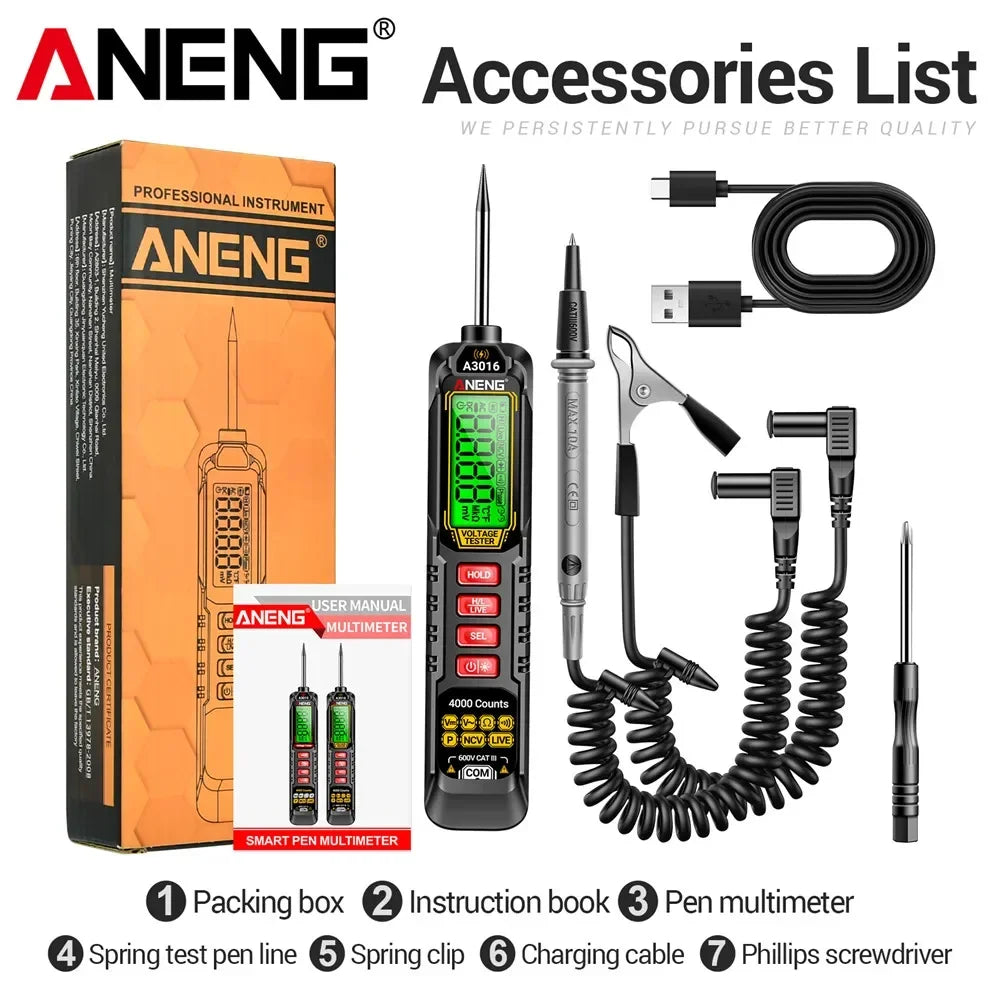

Packing list:

Packaging box * 1

Instruction manual * 1

Multi meter * 1

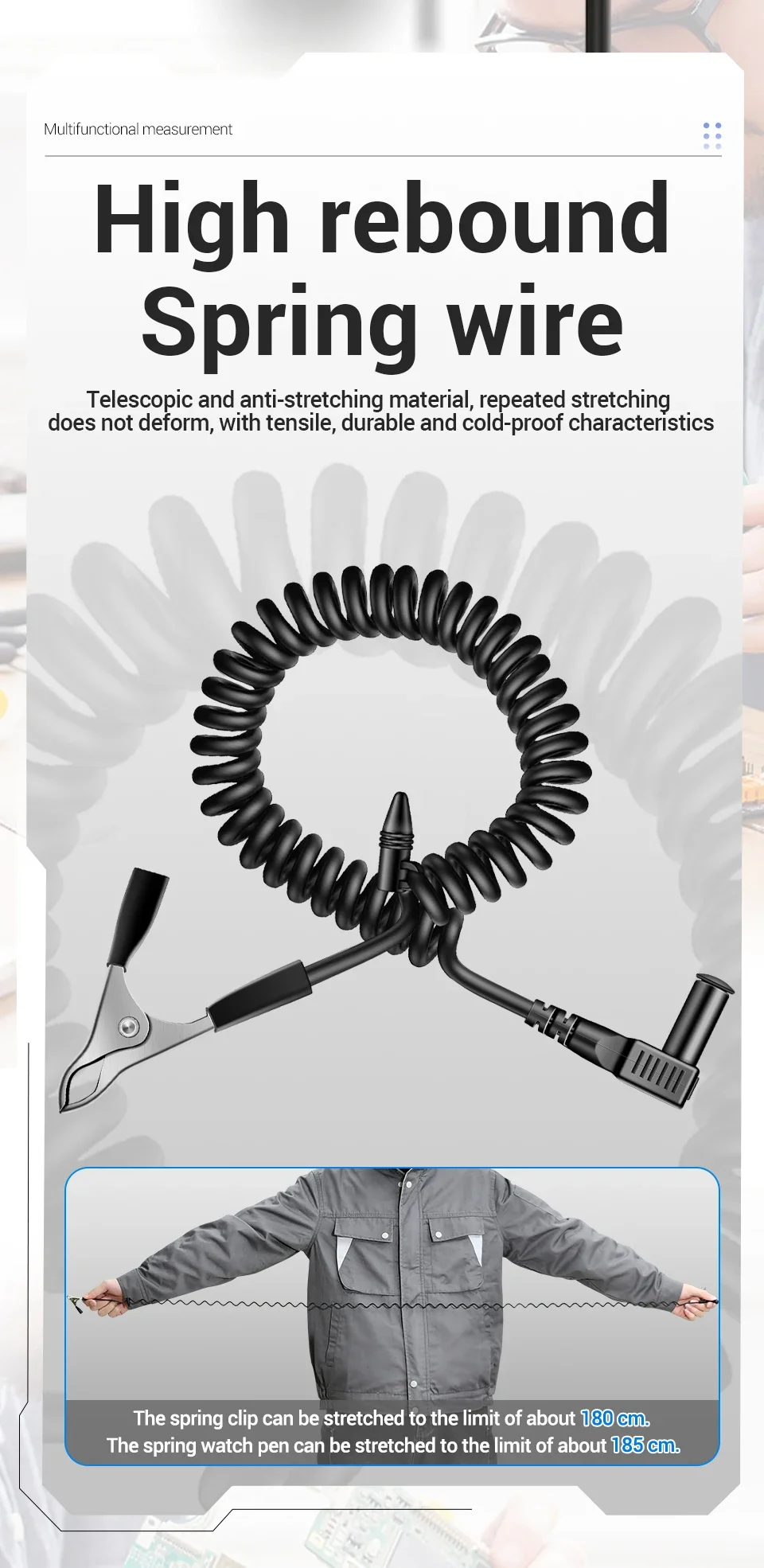

Spring test pen line* 1

Spring clip*1

Charging cable * 1

Philips screwdriver * 1

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
